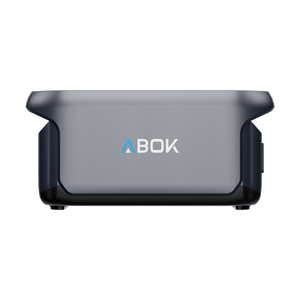

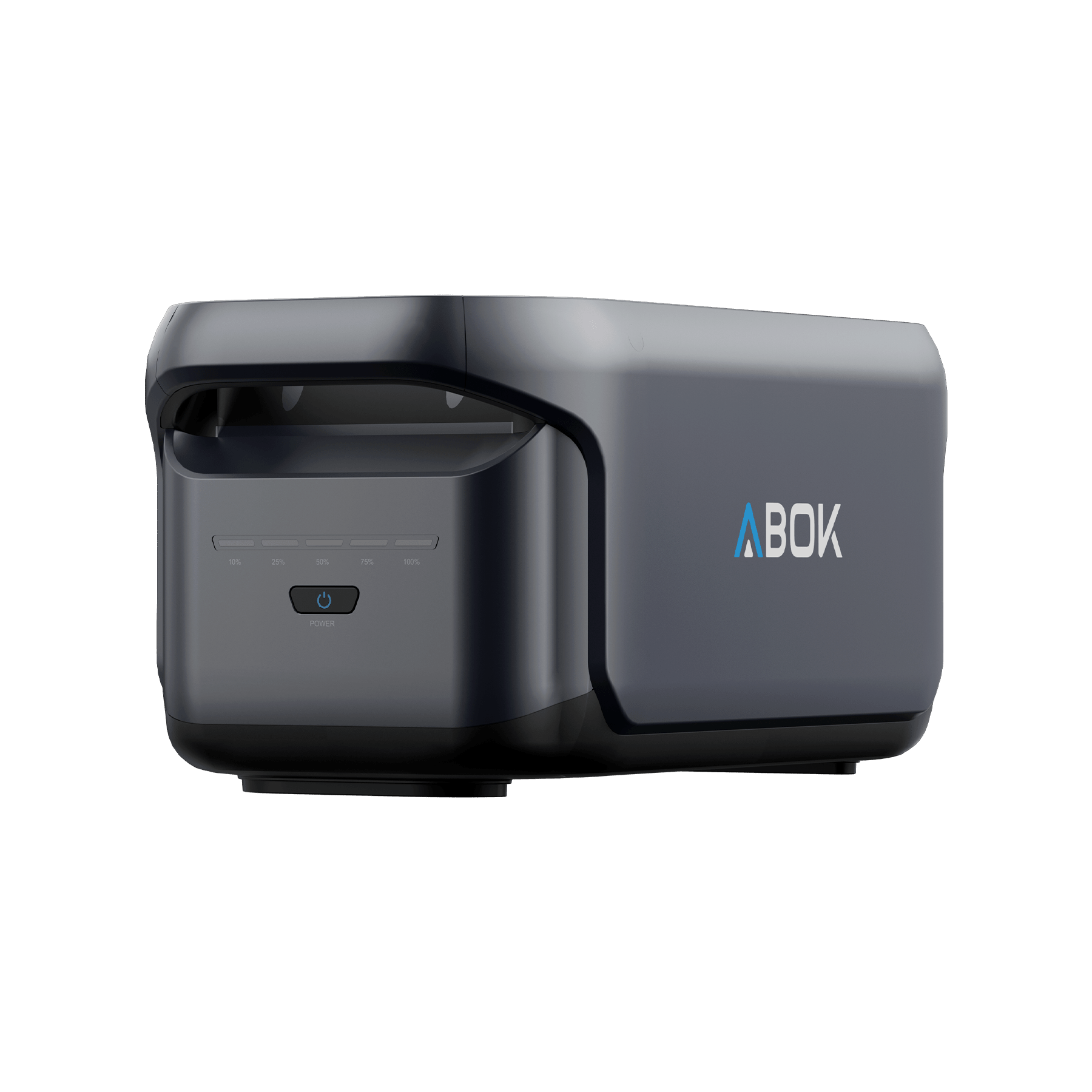

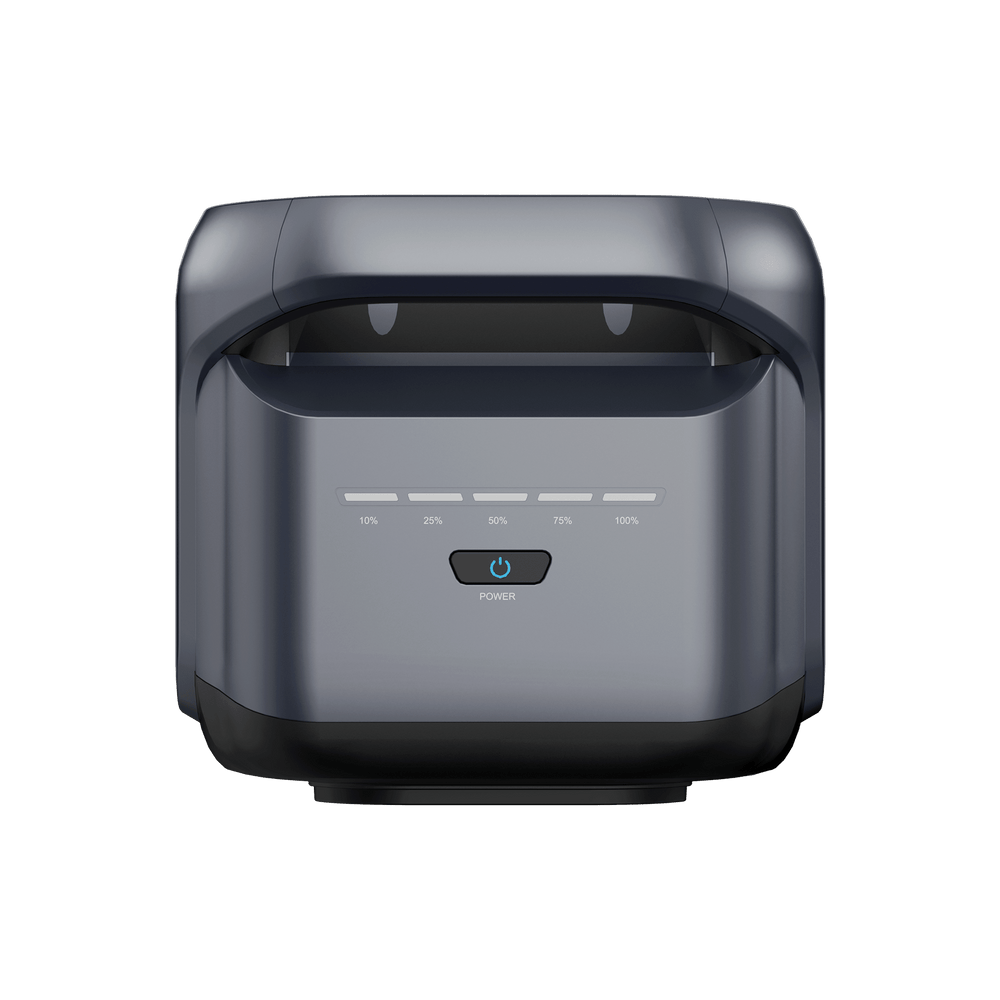

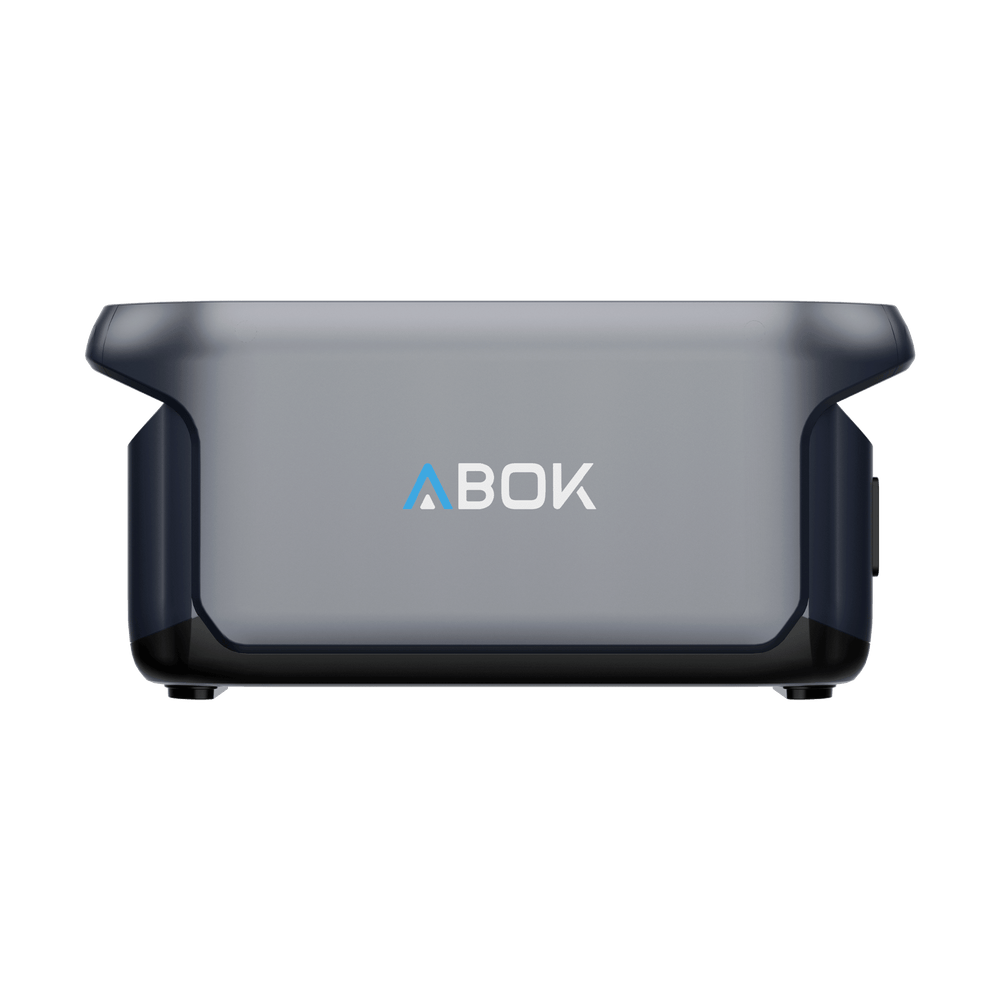

X 1 Extra Battery
Capacity: 1024Wh

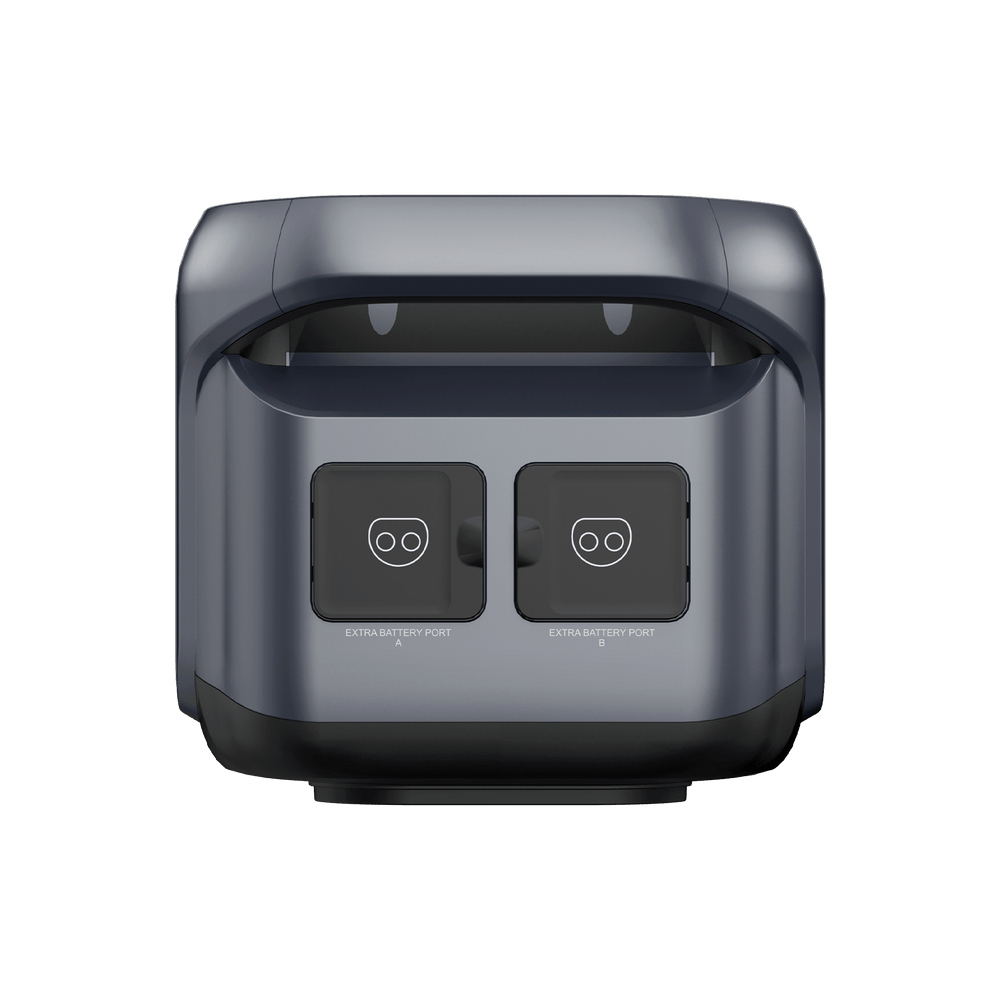

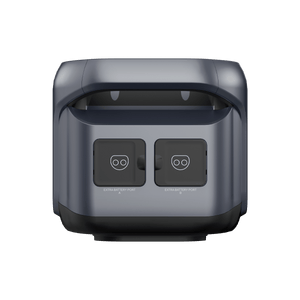

Inputs: Dedicated Parallel Port*2
Outputs: System-managed power via main unit
Function:Expand Ark1800's Capacity up to 5120Wh
X 1 Extra Battery
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Power That Grows With You
Expandable to 5,120Wh with 4 extra batteries for home backup and off-grid power
2048Wh
with 1x Elux 13072Wh
with 2x Elux 14096Wh
with 3x Elux 15120Wh
with 4x Elux 1
- 1
- 2
- 3
- 4

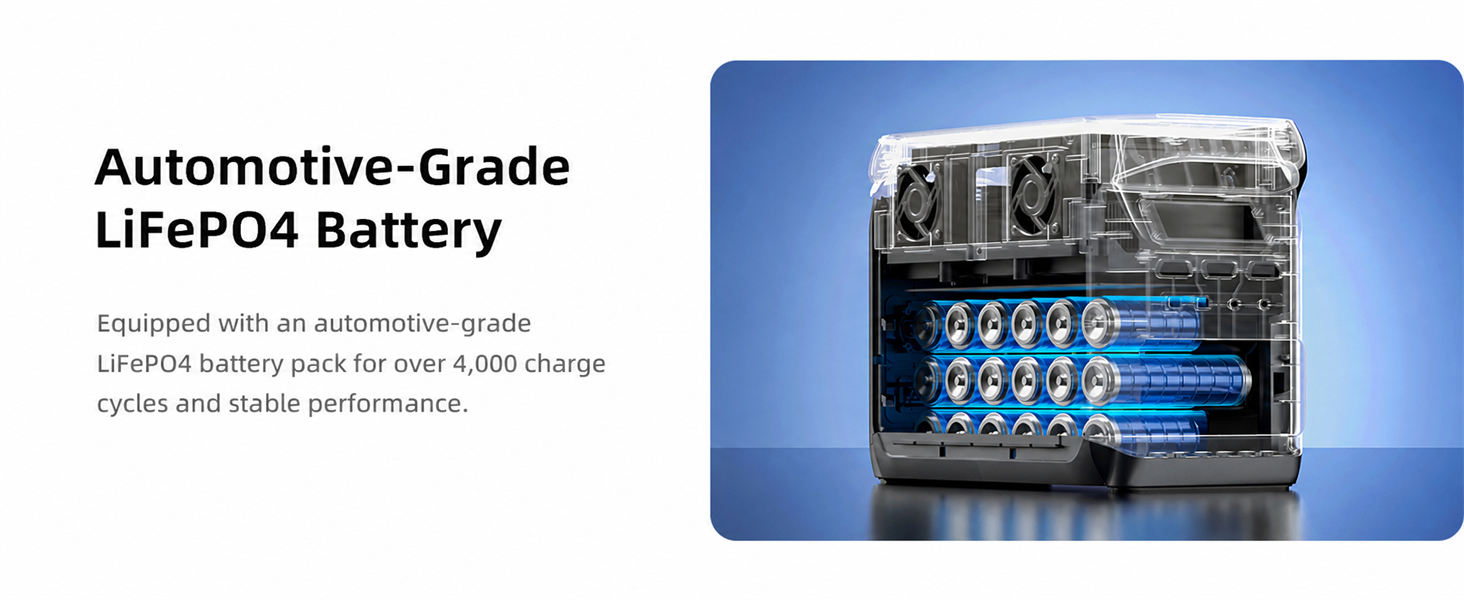

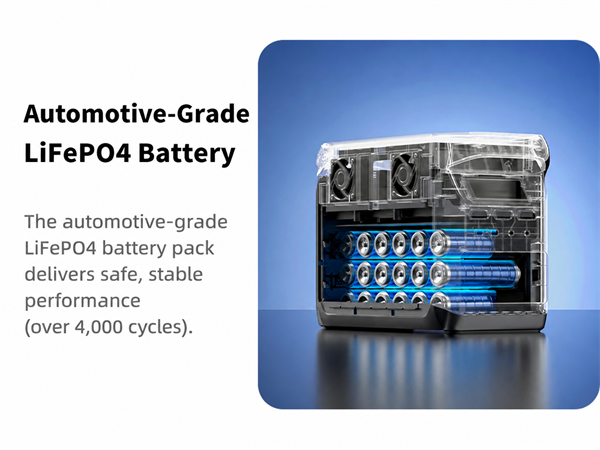

BATTERY PACK
Capacity
1024Wh
Series-Parallel
16S1P
Pack Voltage
51.2V
Ampere-hour
20Ah

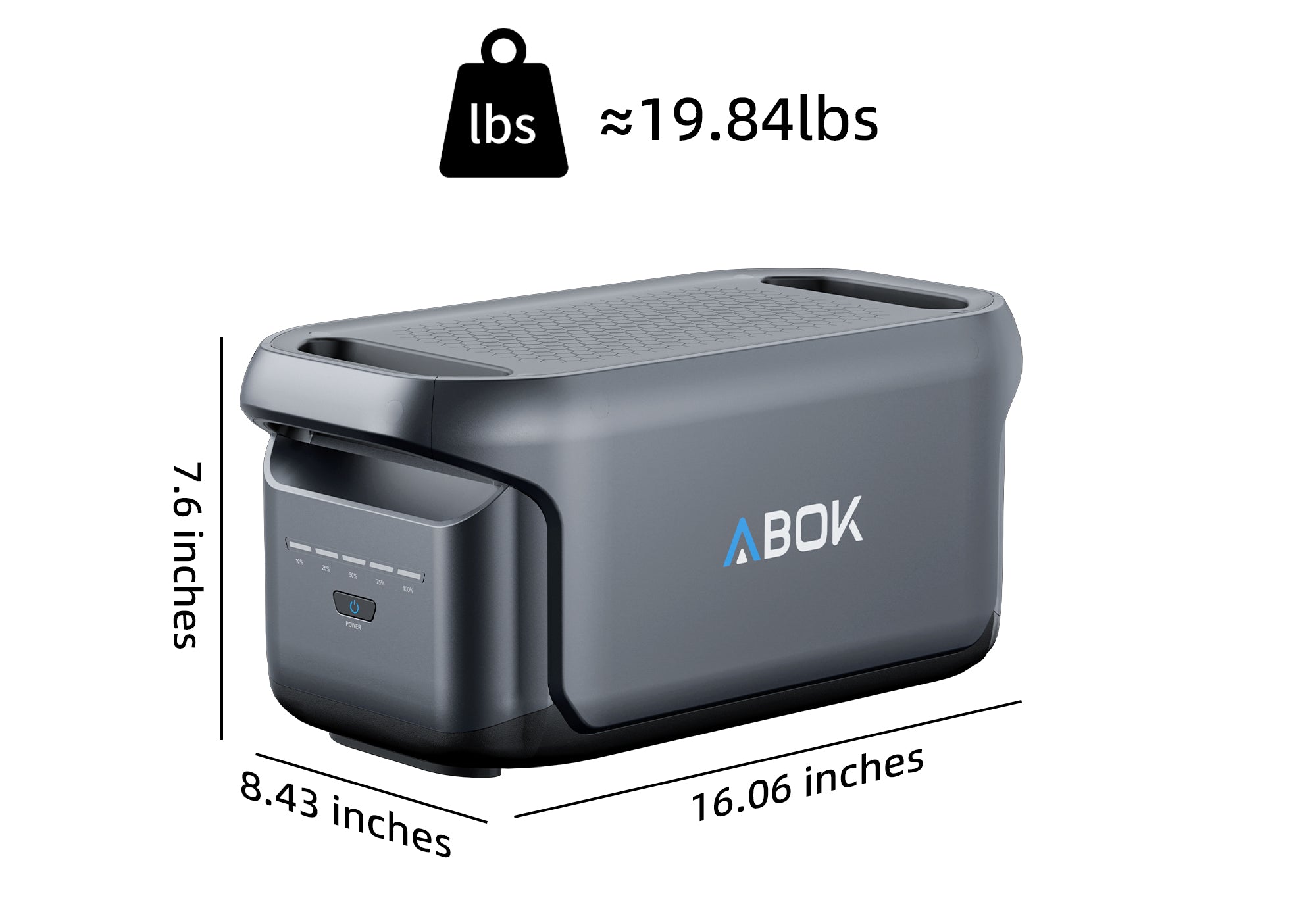

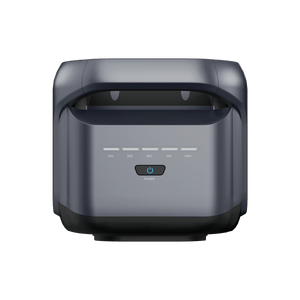

EXTRA BATTERY
Capacity
1024Wh
Expandable in Parallel
4

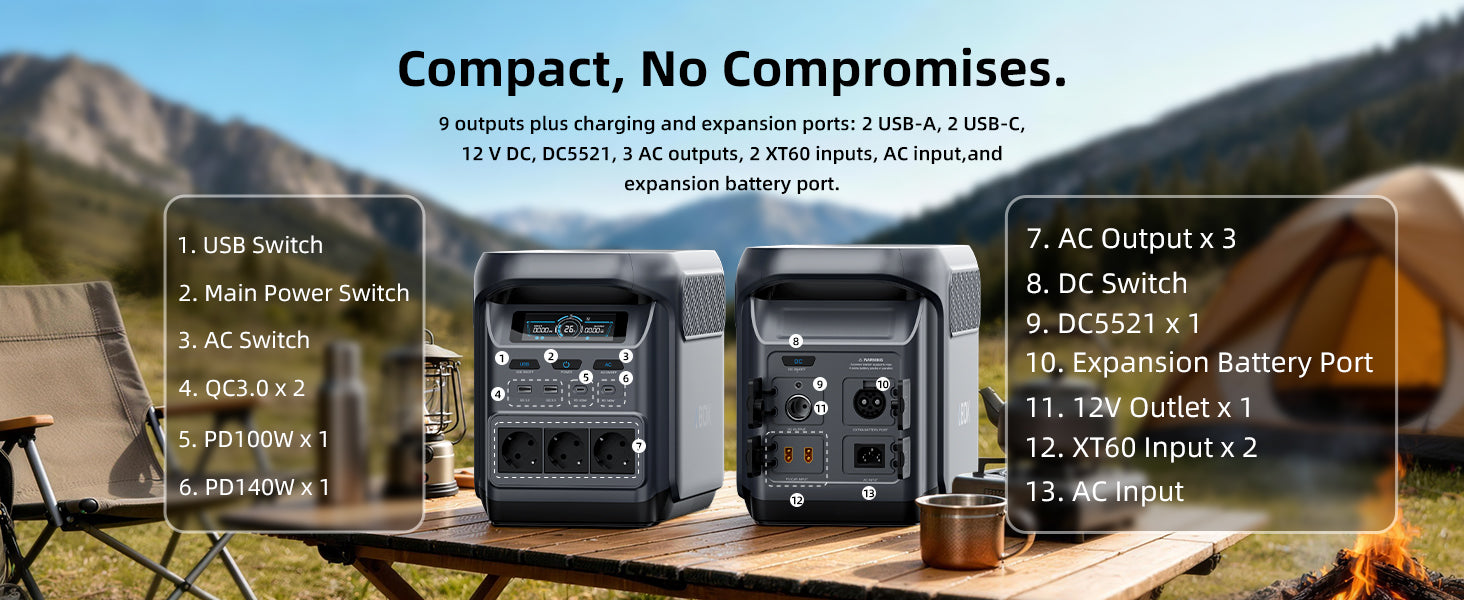

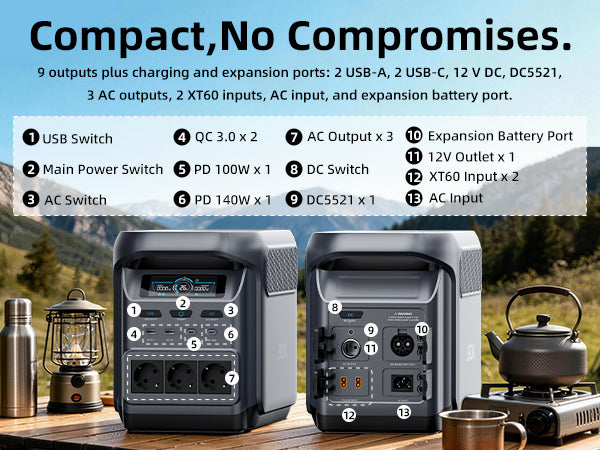

OUTPUT
AC Output Power (EU)
1800W
AC Output Ports (EU)
Type F*3
USB Output
QC 3.0*2 PD 100W*1 PD 140W*1
DC Output Ports
DC 5521*1 12V Socket*1
INPUT
AC Input Power (EU)
1500W
PV Input Voltage
11.5-55V
PV Input Power
500W
Car Charger
✔
PV/Car Input Port
XT60*2
FEATURES
LCD
✔
App Control
✔
SPECIFICATIONS

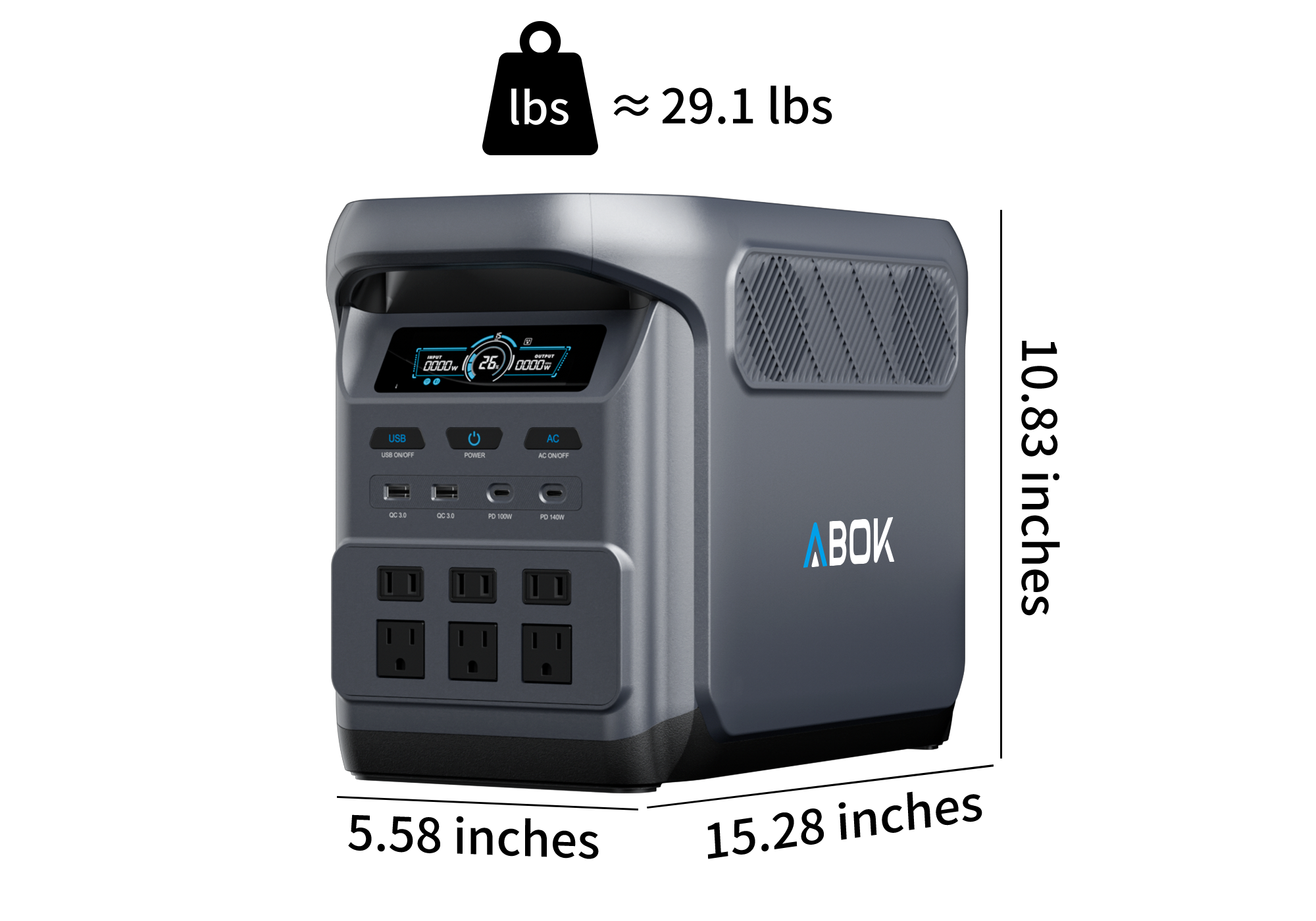

Size
388*218*275mm 15.3×8.6×10.8in
Weight
13.7kg
Operating Temperature
-10℃-40℃
BATTERY PACK
EXTRA BATTERY
OUTPUT
INPUT
FEATURES
SPECIFICATIONS
Solar Panel
Solar Panel Power
400W
Type of Solar Panel
Monocrystaline
Open-circuit Voltage
48V
Operating Voltage
40V
Short Circuit Current
11A
Operating Current
10A
OUTPUT
Output Port
MC4
Output Wire Length
1.5m
FEATURES
IP Rating
IP68
SPECIFICATIONS
Size
2730*769*30mm
Weight
9.7kg
Operating Temperature
-10℃-70℃
